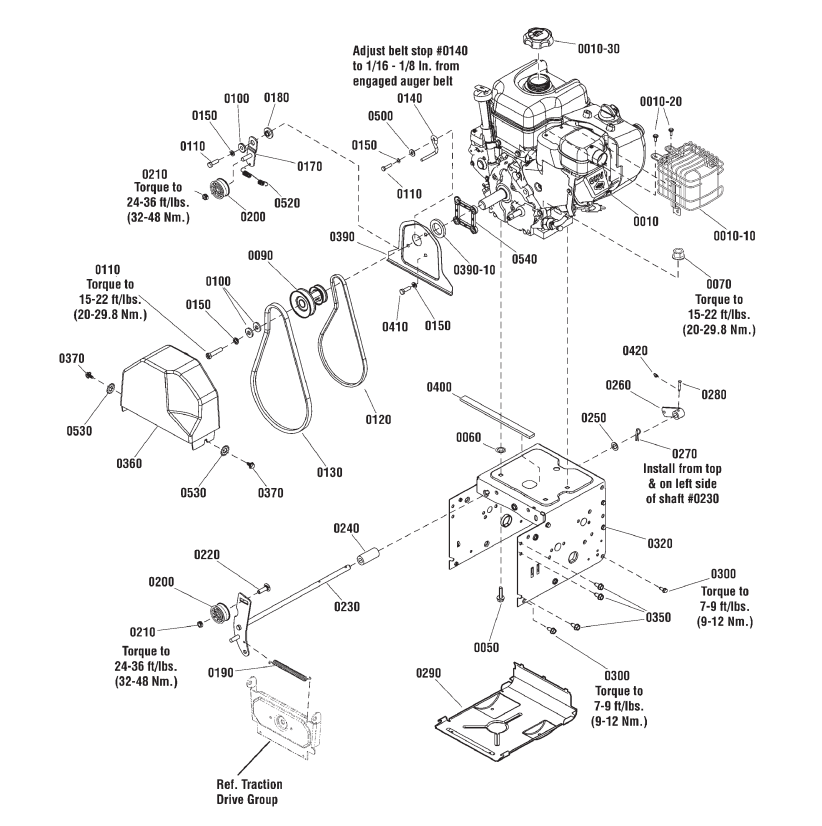

	Ссылка №	Артикул	Наименование	Цена
	0010	10D132-0110-F8	* ENGINE, 163CC Briggs & Stratton Snow Series (Engine Model: 10D132-0110-F8)
	0010-10	591619	GUARD, Muffler (Use on 163CC Engine)	5 442 руб.
	0010-20	590638	SCREW, Muffler Guard (Use on 163CC Engine)
	0010-30	794641	CAP, Fuel Tank (Use on 163CC Engine)	2 006 руб.
	0050	703296	BOLT, Carriage, 5/16-18 x 1-1/2, G5	838 руб.
	0060	028X76MA	NUT, Push, 1/4	933 руб.
	0070	690272MA	NUT, Flange, 5/16-18
	0090	1501109MA	PULLEY, Engine	4 297 руб.
	0100	703298	WASHER, Flat, 5/16	818 руб.
	0110	703299	CAPSCREW, Hex Head, 5/16-24 x 1-1/4, G5	799 руб.
	0120	1733324SM	V-BELT, 3L 33.03	3 511 руб.
	0130	1751417YP	BELT, Auger	4 967 руб.
	0140	1739070YP	BELT GUIDE	823 руб.
	0150	71060MA	LOCKWASHER, Spring, 5/16	876 руб.
	0170	1687797YP	BRACKET, Idler	1 300 руб.
	0180	1501065MA	BUSHING, Ider Bracket	1 085 руб.
	0190	165X159MA	SPRING, Extension, Auger	773 руб.
	0200	1502120MA	IDLER, Plastic Ball Bearing	1 700 руб.
	0210	1960251SM	NUT, Center Lock, 3/8-16	914 руб.
	0220	1960032SM	SCREW, Hex Head, 3/8-16 x 1-1/4	803 руб.
	0230	1752397YP	AUGER IDLER	6 398 руб.
	0240	1501200MA	SPACER, Plastic, 1/2 ID x 1 OD, 1-3/4	1 104 руб.
	0250	703128	WASHER, 1/2	933 руб.
	0270	403162MA	PIN, Hair	11 075 руб.
	0290	1753969BMYP	COVER, Bottom	11 267 руб.
	0300	703054	SCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8	799 руб.
	0320	1754891ZYP	FRAME BOX	21 483 руб.
	0350	703228	SCREW, Thread Rolling, 5/16-18 x 3/4	439 руб.
	0360	1753893YP	COVER, Belt	4 776 руб.
	0370	1751355YP	SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4	728 руб.
	0390	1733868ASM	PLATE, Seal	1 071 руб.
	0390-10	1754847YP	SEAL, Shaft, 3/8" Thick (Use on 163CC Engine)	841 руб.
	0400	1750172YP	STRIP, Seal	1 186 руб.
	0410	910828MA	BOLT, Hex, 5/16-24 x 1	971 руб.
	0500	703302	WASHER, Flat, 5/16	762 руб.
	0520	165X164MA	SPRING, Extension, Idler	1 630 руб.
	0530	7091890SM	WASHER, Internal Lock, 1/4	780 руб.
	0540	1754362YP	SPACER BLOCK (Use on 163CC Engine)	1 224 руб.
