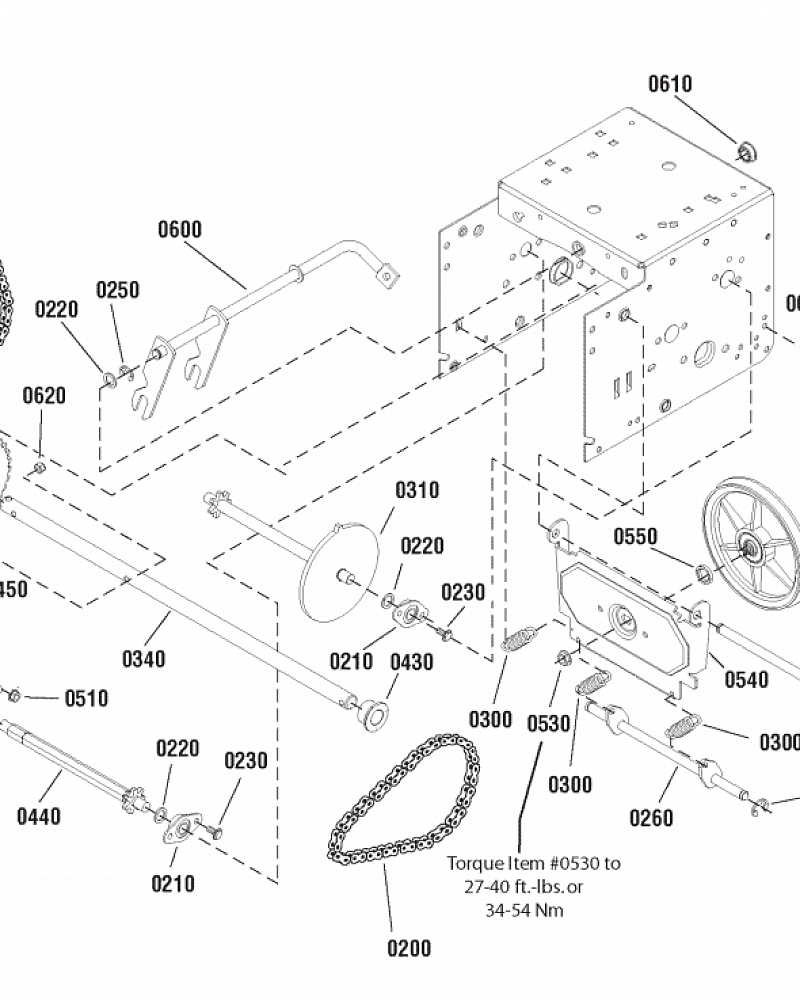

Ссылка №	Артикул	Кол-во	Наименование	Включая	Цена
0200	579851MA		CHAIN, Roller, 420 x 19"
0210	334163MA		RETAINER & BUSHING ASSEMBLY
0220	579858MA		WASHER, Flat, 1/2
0230	703985		SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
0240	579868MA		CHAIN, Roller, 420 x 18"
0250	11X30MA		RETAINER, Ring, 7/16
0260	1502105YZMA		SPRING LINK
0300	1736469YP		SPRING, Extension
0310	1501237MA		SPROCKET, Set
0320	703128		WASHER, 1/2
0330	1501092YZMA		AXLE, Swing Plate, 10-1/2"
0340	1501562MA		AXLE, 21-3/8"
0350	704212		BOLT, Hex Head, 1/4-20 x 1-3/4, G8
0420	1501089MA		AXLE SPROCKET, 30T
0430	1501114MA		BEARING, Axle, D-Hole
0440	1501100MA		SHAFT, Hex
0450	1739282YP		BEARING TRUNNION ASSEMBLY
0460	1501435MA		WHEEL, Friction
0500	001X38MA		CAPSCREW, Hex Head, 1/4-20 x 5/8, G5
0510	703914		NUT, Hex KEPS, 1/4-20
0520	1733326SM		RING, Retaining, External Tooth, # 63
0530	15X114MA		NUT, Flange Lock, 3/8-24
0540	1501057YZMA		PLATE, Swinging
0550	1501158MA		SPACER, Friction Pulley
0560	1501115MA		FRICTION PULLEY ASSEMBLY
0600	1501110YZMA		SPEED SELECTOR
0610	579944MA		BEARING, Flange, 1/2 ID x 7/8OD
0620	703232		NUT, Hex Lock, ESNA Light, 1/4-20
0630	703234		CAPSCREW, Hex Head, 1/4-20 x 1-1/2, G5
0640	579860MA		SPOOL CABLE, Auger Control
0650	1501059YZMA		BRACKET, Cable Spool
0660	1501122MA		CABLE, Forward Drive, Lower
